This is a monster post with all the Class B RV floor plans that I could find (in May 2023)

These are all North American models and where possible, I’ve included the exterior length of the RV, as well as the price.

With the small space of a Class B RV, the layout options are limited; so you’d think it would be a short list. But it’s not!

There are lots of Class B RV manufacturers, and I feel like these smaller RVs are becoming more and more popular.

To try and get some sense of order to this large list of Class B motorhomes, I’ve organised them by the bed layout.

The bed takes up the most space in a camper van, so here are the most common layout plans that are currently available.

Buckle up, there are HEAPS of Class B motorhomes to get through; so the Table of Contents should help you keep track of them all!

Class B RV Floor Plans

Note: I’ve noted the price where I’ve been able to find one. But these are subject to change, so use these as a guide only.


Looking for the perfect camper van?

It can be a bit overwhelming trying to find the campervan/Class B that best suits your needs.

So we’ve created a spreadsheet with ALL the campervans that can be bought new in the USA.

It includes the exterior dimensions, interior height, base price, seating and bed layout, bathroom, solar and air conditioning/heating; with links to each one model.

Graphic for the Class B Master List price $9.

Buy the Class B Master List spreadsheet here.


Sofas that convert to a bed

I’ve been somewhat surprised to learn that this layout seems to be the most popular one used by Class B motorhome manufacturers around the country.

It makes for a comfortable place to relax, enables you to have extra seat-belted seats for passengers, while also allowing you to have a comfortable bed each night.

My two concerns would be:

1) whether I could be bothered converting the bed each day and finding space to store all our pillows and comforter, and

2) whether it would really be a comfortable bed?

Sofa across the rear of the van

Here’s a look at all the RV floor plans with a sofa across the back of the Class B that converts into a bed; and you can judge for yourself whether you think this is a good layout.

Thor Sanctuary/Tranquility 19P & 19PT

The  Sanctuary and Tranquility have the same layout. The 19P is on the Mercedes-Benz Sprinter and the 19PT is on the Ford Transit chassis.

Floor plan of the Thor 19P layout of the Sanctuary and Tranquility Class B RV.
Thor Sanctuary/Tranquility 19P/19PT
Thor Sanctuary Sprinter Van 19P Conversion Bed Radiant Silver Decor
Thor Sanctuary/Tranquility 19P/19PT

Length: 19’8”
Price: MSRP from $172,060 USD
www.thormotorcoach.com

Thor Dazzle/Twist 2JB

The major difference between the Dazzle and Twist campervans is … well now, I can’t find anything anywhere that tells me the difference between these 2 Class Bs?!

They’re built on the RAM ProMaster which helps to keep their price at around $120k while still having all the bells and whistles we’ve come to expect of all RVs.

Floor plan of the Thor Dazzle and Twist 2JB campervans.
Thor Dazzle/Twist 2JB

Length: 21’1”
Price: MSRP from $123,060 USD
www.thormotorcoach.com

Thor Sequence/Tellaro 20J

And then we have the Sequence/Tellaro campervans which have the same 20J layout.

After a bit lot of research, it seems that the only difference between the Sequence and Tellaro is… wait for it… the decor! Sequence has ‘Miami’ decor while the Tellaro is ‘Crisp Linen’. I’m sure you’re all rolling your eyes as much as I am with that.

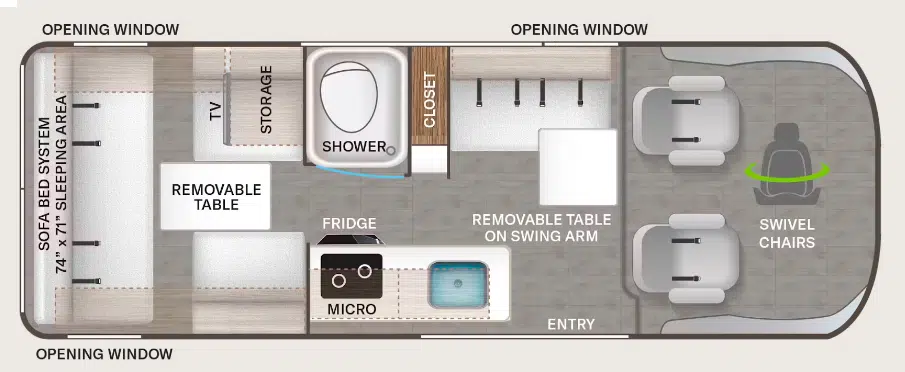

Thor Sequence/Tellaro 20J

Length: 21’1”
Price: MSRP from $140,840 USD
www.thormotorcoach.com

Pleasure-Way Plateau FL

The FL model includes a workstation area up the front of the rig, and with both captains chairs being swivel seats, you have two dining area options.

Floor plan of the Pleasure-Way Plateau FL Class B van.
Pleasure-Way Plateau FL

Length: 22’9”
Price: MSRP $178,685 USD
https://pleasureway.com/models/plateau-fl/

Pleasure-Way Plateau TS

The Plateau TS model has a bigger bathroom, but loses the cabinet and TV at the front of the rig.

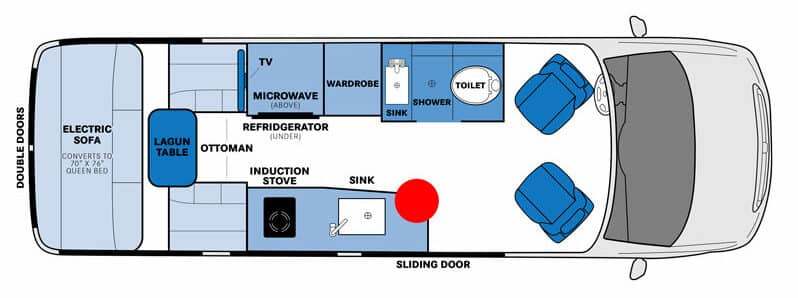

Floor plan of the Pleasure-Way Plateau TS Class B van.
Pleasure-Way Plateau TS

Length: 22’9”
Price: MSRP $178,685 USD
https://pleasureway.com/models/plateau-ts/

Pleasure-Way Ascent

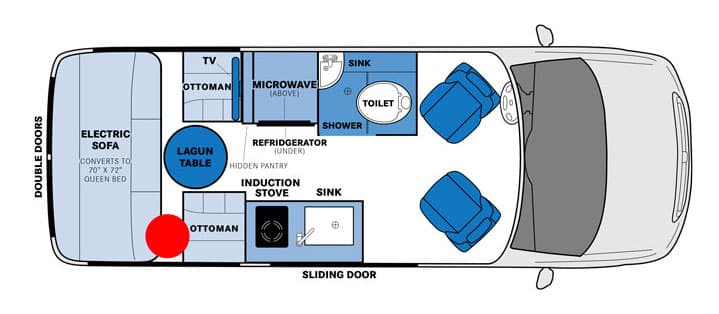

Floor plan of the Pleasure-Way Ascent TS Class B van.
Pleasure-Way Ascent TS

Length: 19’5”
Price: MSRP $168,805 USD
https://pleasureway.com/models/ascent-ts/

Pleasure-Way Ontour 2.0

Floorplan of a Pleasure-Way Ontour 2.0 campervan.
Pleasure-Way Ontour 2.0

Length: 19’8”
Price: MSRP $169,900 USD
https://pleasureway.com/models/ontour20/

Pleasure-Way Ontour 2.2

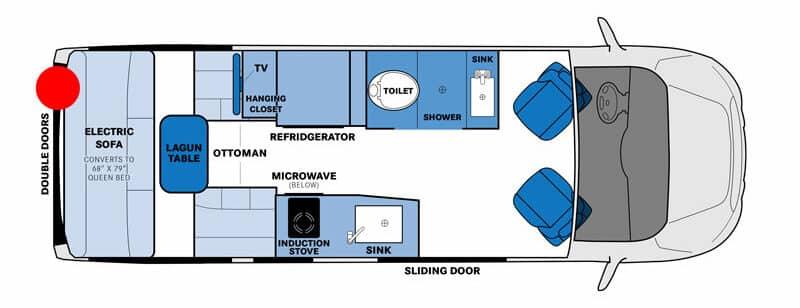

Floorplan of a Pleasure-Way Ontour 2.2 campervan.
Pleasure-Way Ontour 2.2

Length: 21’10”
Price: MSRP $174,200 USD
https://pleasureway.com/models/ontour22/

Winnebago Era

The 70B has a plenty of room for two dining options

Layout illustration of a Winnebago Era 70B campervan.
Winnebago Era 70B

The 70X allows for one more passenger, which may make this vehicle more suitable for families.

Layout illustration of a Winnebago Era 70X campervan.
Winnebago Era 70X

Length: 24’3”
Price: starting at $211,769
https://www.winnebago.com/models/product/era

Airstream Interstate 19

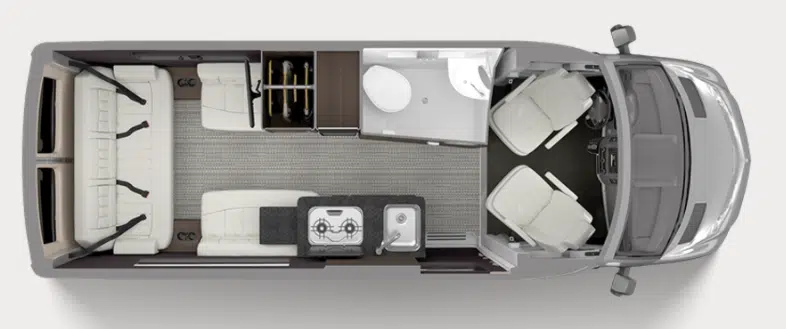

Airstream Interstate camper van floor plan.
Airstream Interstate Nineteen
Bed area of a Airstream Interstate camper van.
Airstream Interstate Nineteen

Length: 19’5″
Price: starting at $200,681
https://www.airstream.com/touring-coaches/interstate-19/

Airstream Interstate 24GT

Airstream Interstate camper van floor plan.
Airstream Interstate 24GT

Length: 24’6″
Price: starting at $233,700
https://www.airstream.com/touring-coaches/interstate-24gt/

Airstream Interstate 24GL

 The 24GL allows for 2 more passengers up front which would make travel days more comfortable, and you can leave the bed made up while still having space for 4 dining.

Airstream Interstate camper van floor plan.
Airstream Interstate 24GL

Length: 24’6″
Price: starting at $233,700
https://www.airstream.com/touring-coaches/interstate-24gl/

Coachmen Nova 20C

The 20C floorplan is very similar to all the others, with the wet bath on one side and the kitchen on the other.

Layout of the Coachmen Nova 20C Class B motorhome.
Coachmen Nova 20C

Length: 20’11”
https://coachmenrv.com/class-b-motorhomes/nova

See a video walkthrough of the Nova.



Coachmen Galleria 24F, 24Q & 24T

 The 24FL, 24Q and 24T are all variations of the same layout with front seating for 1, 2 or 3 passengers.

Layout of the Coachmen Galleria 24FL Class B motorhome.
Coachmen Galleria 24FL
Layout of the Coachmen Galleria 24Q Class B motorhome.
Coachmen Galleria 24Q
Layout of the Coachmen Galleria 24T Class B motorhome.
Coachmen Galleria 24T
Rear sofa in the Coachmen Galleria 24Q.
Coachmen Galleria 24Q

Length: 24’3”
https://coachmenrv.com/class-b-motorhomes/galleria

Coachmen Beyond 22C

Layout of the Coachmen Beyond 22C Class B motorhome.
Coachmen Beyond 22C

Length: 22’2”
https://coachmenrv.com/class-b-motorhomes/beyond

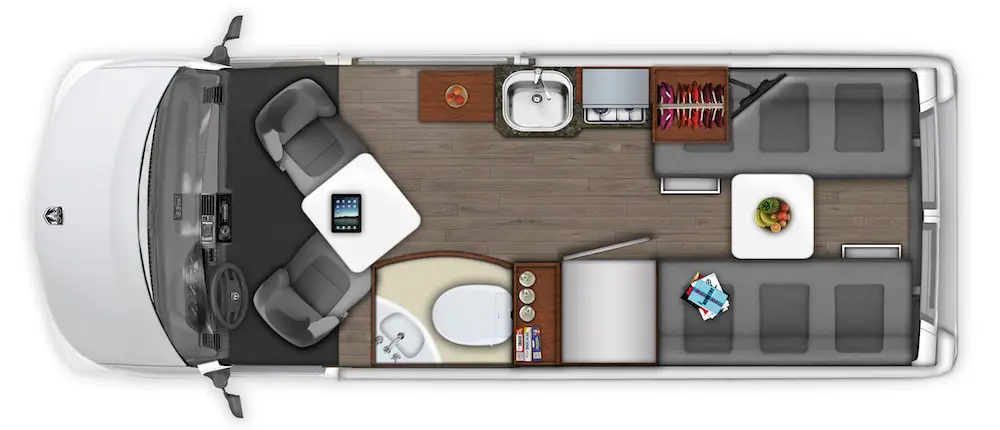

Roadtrek Zion, Zion SRT & Zion Slumber

Roadtrek Zion Class B campervan floor plan.
Roadtrek Zion SRT

There are three Zions (Zion, Zion SRT & Zion Slumber) that are all built on the Ram Promaster chassis.

The Zion SRT (shown above) is the shortest of the 3 versions at 19’7″, while the Zion and Zion Slumber are 20’9″.

The Zion Slumber has a pop-top roof which allows sleeping space for 2 more people.

There’s also a dinette option in the Zion and Zion Slumber, which I’ve included in the ‘Convert dining to bed’ section below.

Length: 19’7”
Price: MSRP $173,586 USD
https://roadtrek.com/models/zion-srt/

Roadtrek SS Agile

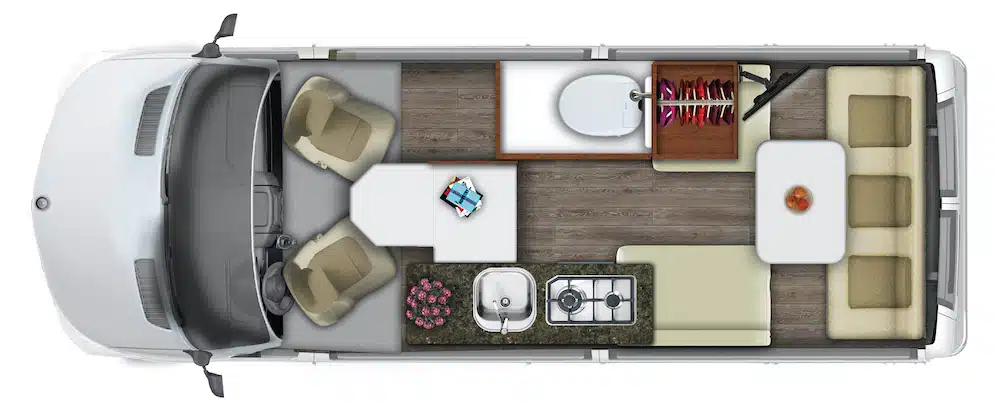

Layout of the Roadtrek SS Agile Class B motorhome.
Roadtrek SS Agile

Length: 19’5”
Price: MSRP $195,986 USD
https://roadtrek.com/models/ss-agile/

Roadtrek Play SRT

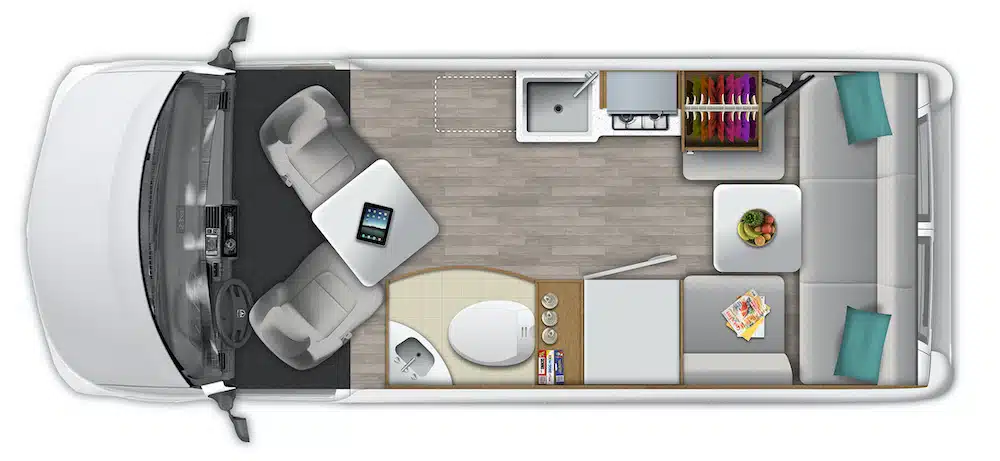

Roadtrek Play SRT

Length: 19’7”
Price: MSRP $146,986 USD
https://roadtrek.com/models/2023-play-srt/

Fleetwood Irok

Fleetwood Irok Class B campervan layout
Fleetwood Irok

Length: 21’
Price: $159,950
https://www.fleetwoodrv.com/models/irok-2023/

American Coach Patriot FD2

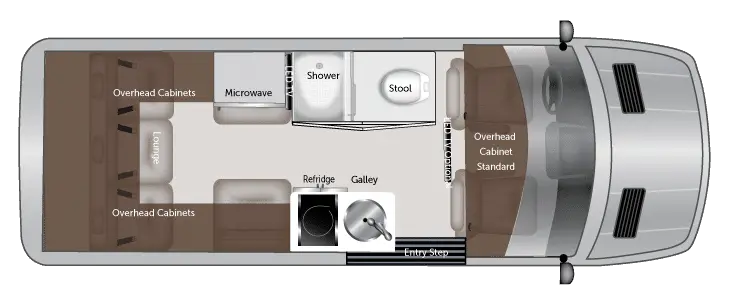

Floor plan of an American Coach Patriot Class B van FD2.
American Coach Patriot FD2

Price: $206,243
https://www.americancoach.com/models/american-patriot/

American Coach Patriot 170 MD2

Floor plan of an American Coach Patriot Class B van 170 MD2.
American Coach Patriot 170 MD2

Price: $209,243
https://www.americancoach.com/models/american-patriot/

American Coach Patriot 170EXT MD2

Floor plan of an American Coach Patriot Class B van 170EXT MD2.
American Coach Patriot 170EXT MD2

Price: $209,243
https://www.americancoach.com/models/american-patriot/

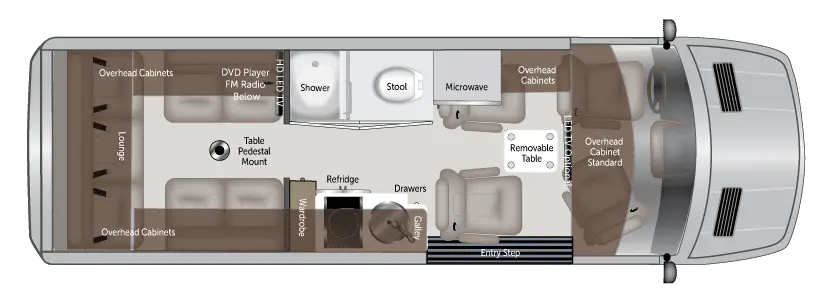

American Coach Patriot 170EXT MD4

Floor plan of an American Coach Patriot Class B van 170 MD4.
American Coach Patriot 170EXT MD4

Price: $212,085
https://www.americancoach.com/models/american-patriot/

American Coach Patriot Ford MD2

Floor plan of an American Coach Patriot Class B van Ford MD2.
American Coach Patriot Ford MD2

Price: $197,993
https://www.americancoach.com/models/american-patriot/

This video walkthrough takes you through the 2022 American Coach Patriot MD2 and gives you a really good sense of the space inside, and the quality of the fixtures and fittings.

Entegra Coach Expanse & Expanse Li

The difference between the Expanse and Expanse Li is that the Li version has a 10KWh Renogy lithium system and 200 watts of roof-mounted solar panels, compared to the AGM batteries in the non-Li version.

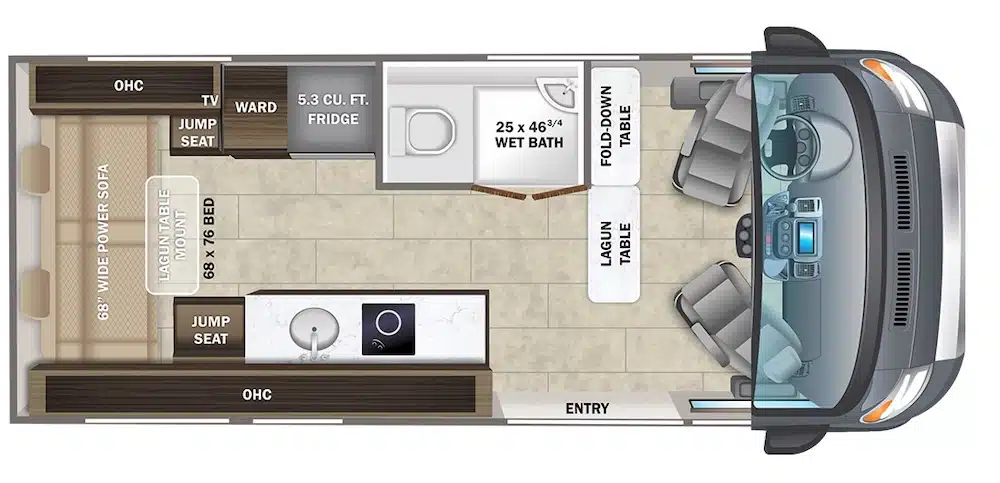

Entegra Coach Expanse & Expanse Li

Length: 22′
Price: MSRP starts at $175,050 USD
https://www.entegracoach.com/motorhomes/expanse/

That’s all the models I could find that have the sofa across the back of the van (there’s a lot, I know).

Sofa along one side of the van

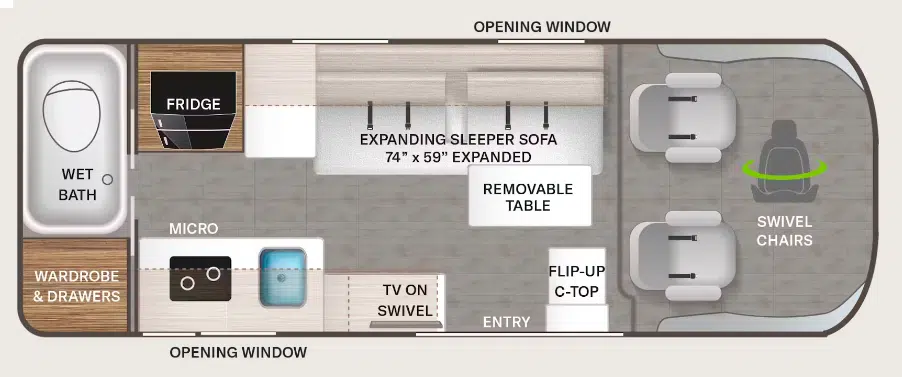

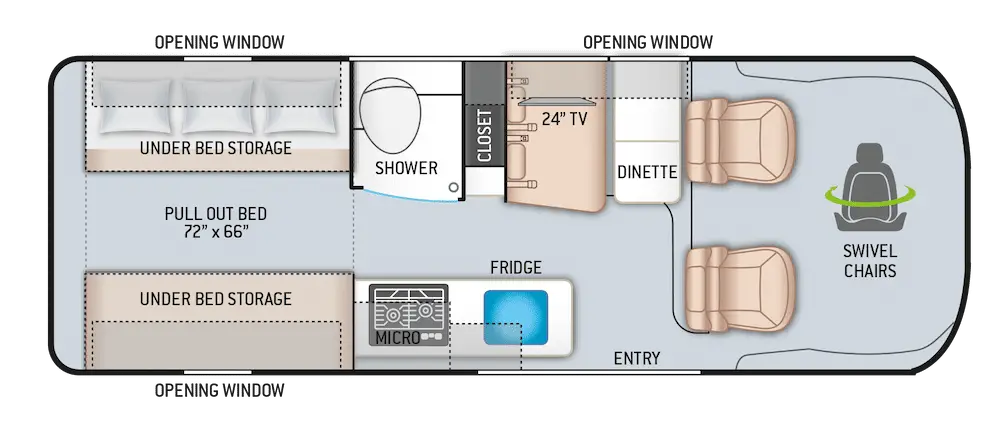

Thor Sequence / Tellaro 20k

Length: 21’1”
Price: MSRP from $135,100
https://www.thormotorcoach.com/sequence

Thor Rize / Scope 18m

Thor Rize/Scope 18m

Length: 17’11”
Price: MSRP from $114,380
https://www.thormotorcoach.com/rize

Chinook RV Bayside

Length: 21’11”
https://www.chinookrv.com/bayside

Entegra Coach Ethos 20A & 20D / Ethos Li 20AL & 20DL

The difference between the Ethos and Ethos Li is that this Li has a lithium battery system.

The 20A / 20AL and 20D / 20DL layouts are the same, except that the ‘L’ includes a pop top roof. (Sorry if I’ve made that as clear as mud!)

Floor plan of the Entegra Coach Ethos Class B motorhome.
Entegra Coach Ethos Li

Length: 20’11”
Price: MSRP from $145,050
https://www.entegracoach.com/motorhomes/ethos/

Jayco Swift 20A & 20D / Swift 20AL & DL

You can see that the Swift / Swift Li is the Jayco version of the Ethos above. Same layout and even the same naming conventions used.

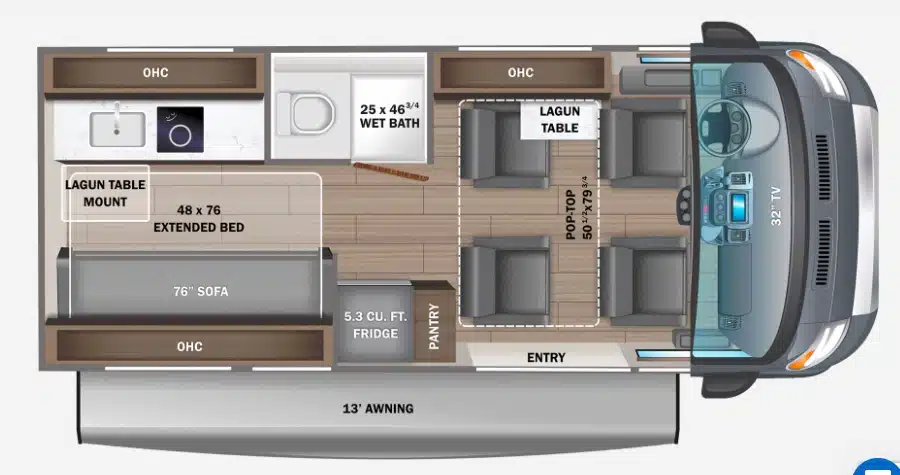

Jayco Swift

Length: 20’11”
Price: MSRP from $145,050
https://www.jayco.com/rvs/class-b-motorhomes/2023-swift/

So that concludes all the Class B RVs that have a sofa, either across the back of the van or along the side, that converts into a bed.

The next most popular bed type is the dinette that converts into a bed.

Dinettes that convert to a bed

Airstream Interstate 24X

Layout of the Airstream Interstate 24X campervan.
Airstream Interstate 24X

Length: 24’
Price: starting $246,351
https://www.airstream.com/touring-coaches/interstate-24x/

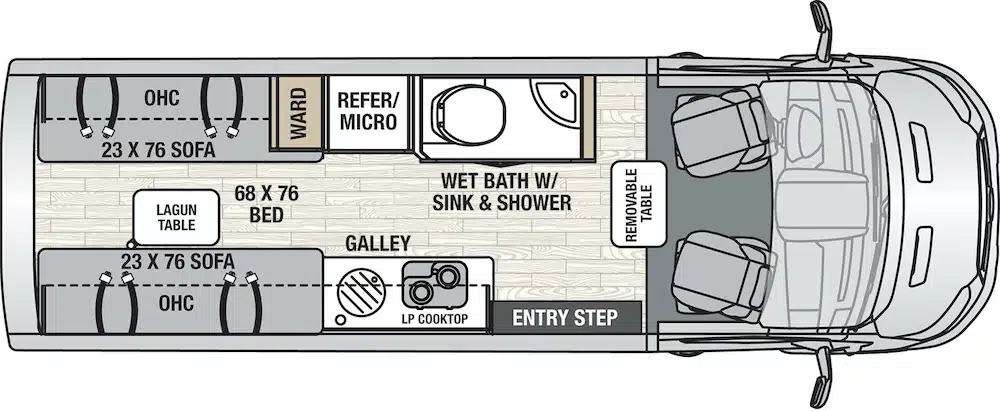

Coachmen Beyond 22D

Not only does the rear dining area convert to a bed, it’s also got seatbelts, that makes this a great people mover if that’s what you need.

Coachmen Beyond 22D

Length: 22’2”
https://coachmenrv.com/class-b-motorhomes/beyond

Roadtrek Zion & Zion Slumber

These two models are the same except that the Slumber has a pop-top which allows for a sleeping area for another 2 people.

Roadtrek Zion

Length: 20’9”
Price: MSRP starting at $180,586
https://roadtrek.com/models/zion/

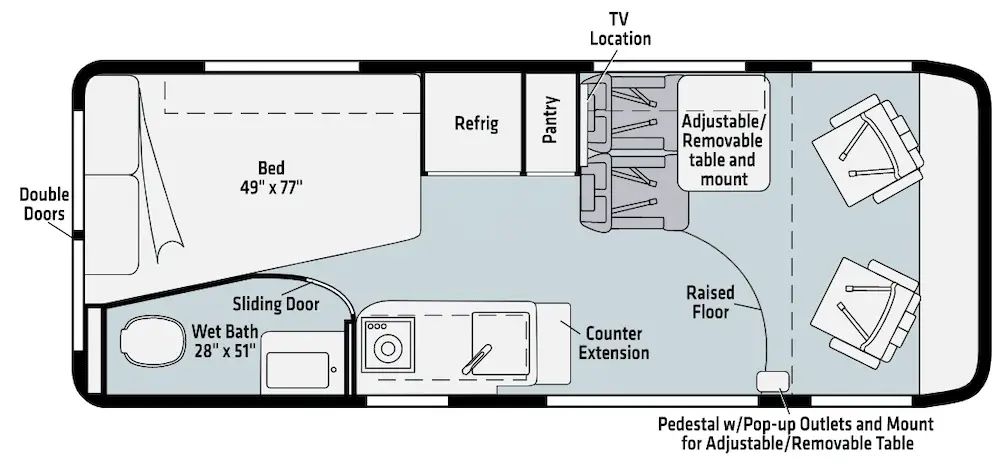

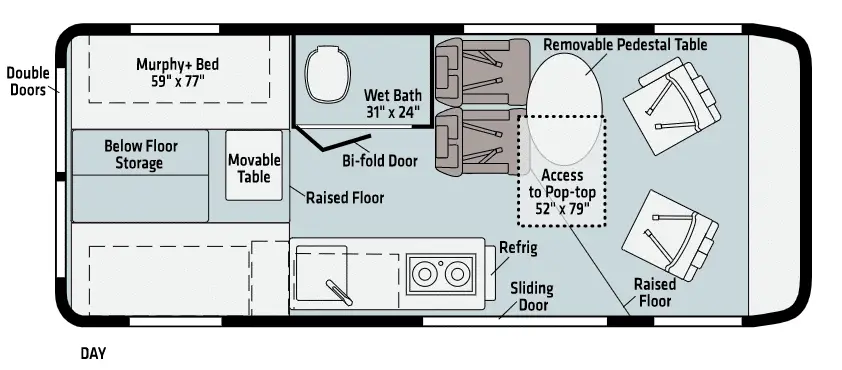

Class Bs with (mostly) permanent beds

As you can see, this list is getting HUGE! So I’ve put all the Class B’s that have permanent beds (or at least, mostly permanent) on to another post. You can see all those beds here:

There are a lot of Class B manufacturers, but they pretty much all stick to just a couple of layouts (I mean… in a space that small, there isn’t really too many options!)

Which floor plan do you think is the ‘best’, and why?

Don’t forget you can buy the Class B Master List spreadsheet here.
